TC-IPC-HDW22221R-ZS
05/14/2017

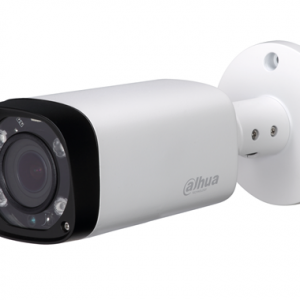

TC-IPC-HFW22221R-ZS
2MP FHD Network IR Bullet Camera
.1/2.7” 2Megapixel progressive CMOS
.H.264+ &H.264 dual-stream encoding
.Max 25/30fps@1080P(1920×1080)
.Day/Night(ICR), 3DNR, AWB, AGC, BLC，WDR(120dB)
.Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
.2.7~12mm varifocal lens
.Max IR LEDs Length 60m
.IP67, PoE
.Micro SD card, up to 128GB
| Technical Specification | |||||
| Camera | |||||
| Image Sensor | 1/2.7” 2Megapixel progressive
scan CMOS |
||||
| Effective Pixels | 1920(H)x1080(V) | ||||
| RAM/ROM | 256MB/16MB | ||||
| Scanning System | Progressive | ||||
| Minimum Illumination | 0.01Lux/F1.4 (Color), 0Lux/F1.4
(IR on) |
||||
| S/N Ratio | More than 50dB | ||||
| IR Distance | Distance up to 60m (197ft) | ||||
| IR On/Off Control | Auto/ Manual | ||||
| IR LEDs | 4 | ||||
| Lens | |||||
| Lens Type | Motorized(-ZS)
Manual(-VFS) |
||||
| Mount Type | Board-in | ||||
| Focal Length | 2.7mm~12mm | ||||
| Max. Aperture | F1.4 | ||||
| Angle of View | H:99°~37°, V:52°~21° | ||||
| Focus Control | Auto (-ZS)
Manual(-VFS) |
||||
| Close Focus Distance | 0.3m | ||||
| PTZ | |||||
| Pan/Tilt Range | Pan:0° ~360° ;Tilt：0° ~90° ;
Rotation：0° ~360° |
||||
| Video | |||||
| Compression | H.264+/H.264 | ||||
| Streaming Capability | 2 Streams | ||||
| Resolution | 1080P(1920×1080)/1.3M(1280×
960)/720P(1280×720)/D1(704× 576/704×480)/CIF(352×288/352 ×240) |
||||
| Frame Rate | 1080P(1 ~ 25/30fps) | ||||
| D1/CIF(1 ~ 25/30fps) | |||||
| Bit Rate Control | CBR/VBR | ||||
| Bit Rate | H264:32K ~ 10Mbps | ||||
| Day/Night | Auto(ICR)/Color/B/W | ||||
| BLC Mode | BLC / HLC / WDR(120dB) | ||||
| White Balance | Auto/Natural/Street Lamp/
Outdoor/Manual |
||||
| Gain Control | Auto/Manual | ||||
| Noise Reduction | 3D DNR | ||||
| Motion Detetion | Off / On (4 Zone, Rectangle) | ||||
| Region of Interest | Off / On (4 Zone) | ||||
| Smart IR | Support | ||||
| Digital Zoom | 16x | ||||
| Flip | 0°/90°/180°/270° | ||||
| Mirror | Off / On | ||||
| Privacy Masking | Off / On (4 Area, Rectangle) | ||||
| Audio | |||||
| Compression | N/A | ||||
| Network | |||||
| Ethernet | RJ-45 (10/100Base-T) | ||||
| Protocol | HTTP;HTTPs;TCP;ARP;RTSP;RTP;
UDP;SMTP;FTP;DHCP;DNS;DDNS; PPPOE;IPv4/v6;QoS;UPnP;NTP; Bonjour;802.1x;Multicast;ICMP; IGMP |
||||
| Interoperability | ONVIF, PSIA, CGI | ||||
| Streaming Method | Unicast / Multicast | ||||
| Max. User Access | 10 Users/20 Users | ||||
| Edge Storage | NAS,
Local PC for instant recording, Micro SD card 128GB |
||||
| Web Viewer | IE, Chrome, Firefox, Safari | ||||
| Management Software | Smart PSS, DSS, Easy4ip | ||||
| Smart Phone | IOS, Android | ||||
| Certifications | |||||
| Certifications | CE (EN 60950:2000)
UL：UL60950-1 FCC: FCC Part 15 Subpart B |
||||
| Interface | |||||
| Video Interface | N/A | ||||
| Audio Interface | N/A | ||||
| RS485 | N/A | ||||
| Alarm | N/A | ||||
| Electrical | |||||
| Power Supply | DC12V,POE(802.3at) (Class 0) | ||||
| Power Consumption | <11.5W/12.95W | ||||
| Environmental | |||||
| Operating Conditions | -30°C ~ +60°C (-22°F ~ +140°F) /
Less than 90% RH |
||||
| Strorage Conditions | -30°C ~ +60°C (-22°F ~ +140°F) /
Less than 90% RH |
||||
| Ingress Protection | IP67 | ||||
| Vandal Resistance | N/A | ||||
| Construction | |||||
| Casing | Metal | ||||
| Dimensions | 72mm×80mm×212.8mm
(2.8″ x 3.1″x 8.4″) |
||||
| Net Weight | 0.685Kg (1.51lb) | ||||
| Gross Weight | 0.86Kg (1.90lb) | ||||
| Ordering Information | |||||
| Type | Part Number | Description | |||
| 2MP
camera |
DH-IPC-HFW2221RP-
ZS -IRE6 |
2MP Full HD Network
IR Bullet Camera, WDR, PAL |
|||
| DH-IPC-HFW2221RN-
ZS -IRE6 |
2MP Full HD Network
IR Bullet Camera, WDR,,NTSC |
||||
| DH-IPC-HFW2221RP-
VFS-IRE6 |
2MP Full HD Network
IR Bullet Camera, WDR, PAL |
||||
| DH-IPC-HFW2221RN-
VFS-IRE6 |
2MP Full HD Network
IR Bullet Camera , WDR,,NTSC |
||||
| IPC-HFW2221RP-
ZS -IRE6 |
2MP Full HD Network
IR Bullet Camera, WDR, PAL |
||||
| IPC-HFW2221RN-
ZS -IRE6 |
2MP Full HD Network
IR Bullet Camera, WDR,,NTSC |
||||
| IPC-HFW2221RP-
VFS-IRE6 |
2MP Full HD Network
IR Bullet Camera, WDR, PAL |
||||
| IPC-HFW2221RN-
VFS-IRE6 |
2MP Full HD Network
IR Bullet Camera, WDR,,NTSC |
||||
| Accessories (optional) | PFA135 | Junction Box | |||
| PFA150 | Pole mount | ||||
|
|
|||||
| Accessories | |||||
| Optional:
|
|||||
| Dimensions (mm/inch) | |||||
